Tormach 15L Compatible, 3-Gang Turret Extension Kit with Chucks and Coolant Block

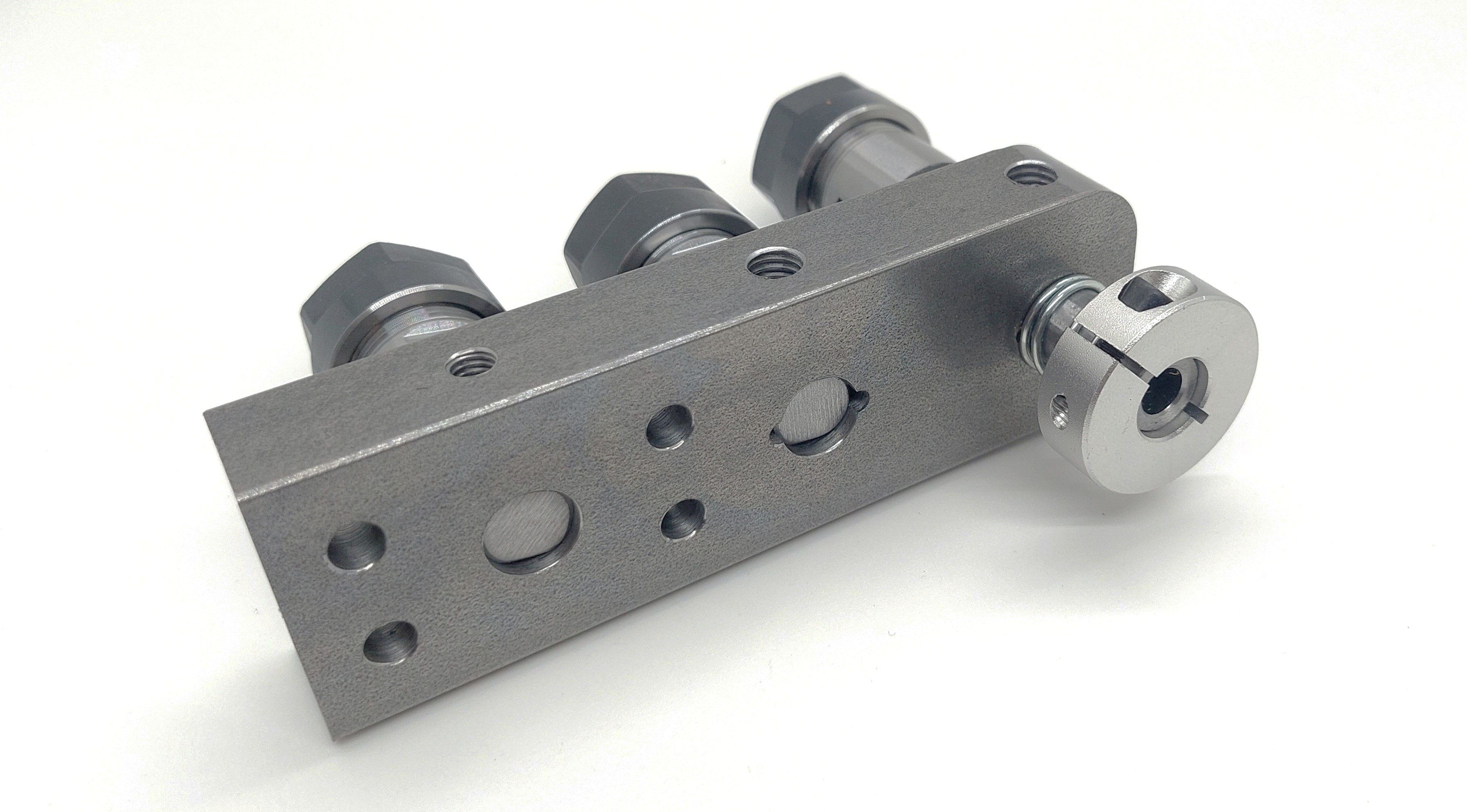

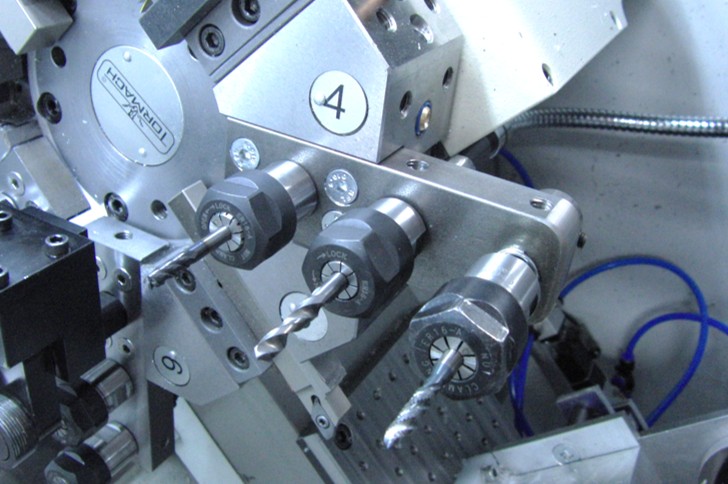

This Block allows a slot on the Turret on the Tormach 15L Slant-PRO Lathe to be used with three tools.
- Made from Alloy Steel ("Chrome-Moly": AISI 4140).
- Precision Reamed (H7) 12.0mm Center Holes.

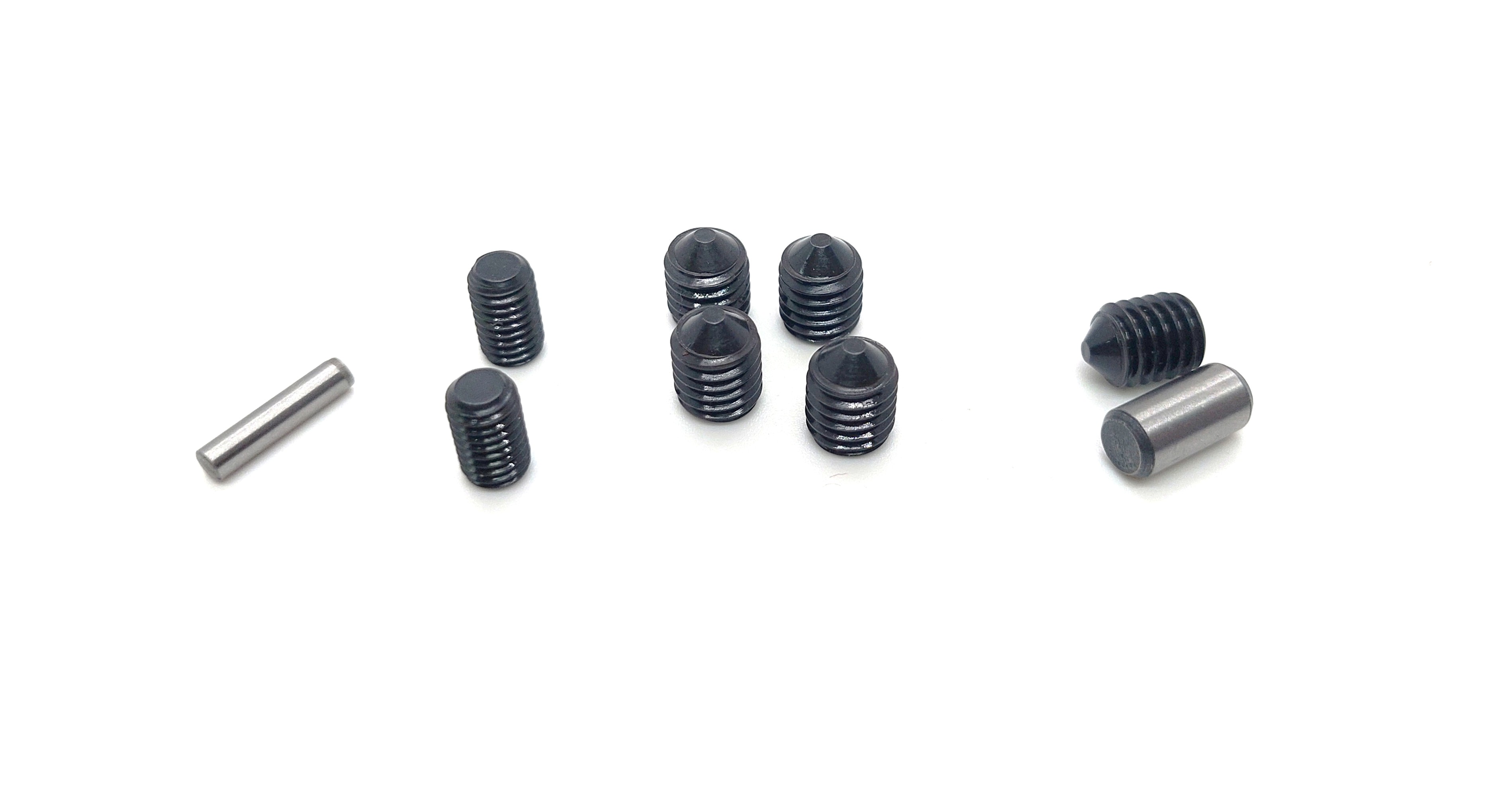

- 2x M6 & 5x M8 Set Screws for holding Collets or Tools securely.
- Includes one Tension/Compression Holder, 2x Stubby Holders. ER16
- Mounted using existing 4x M6 hole pattern.

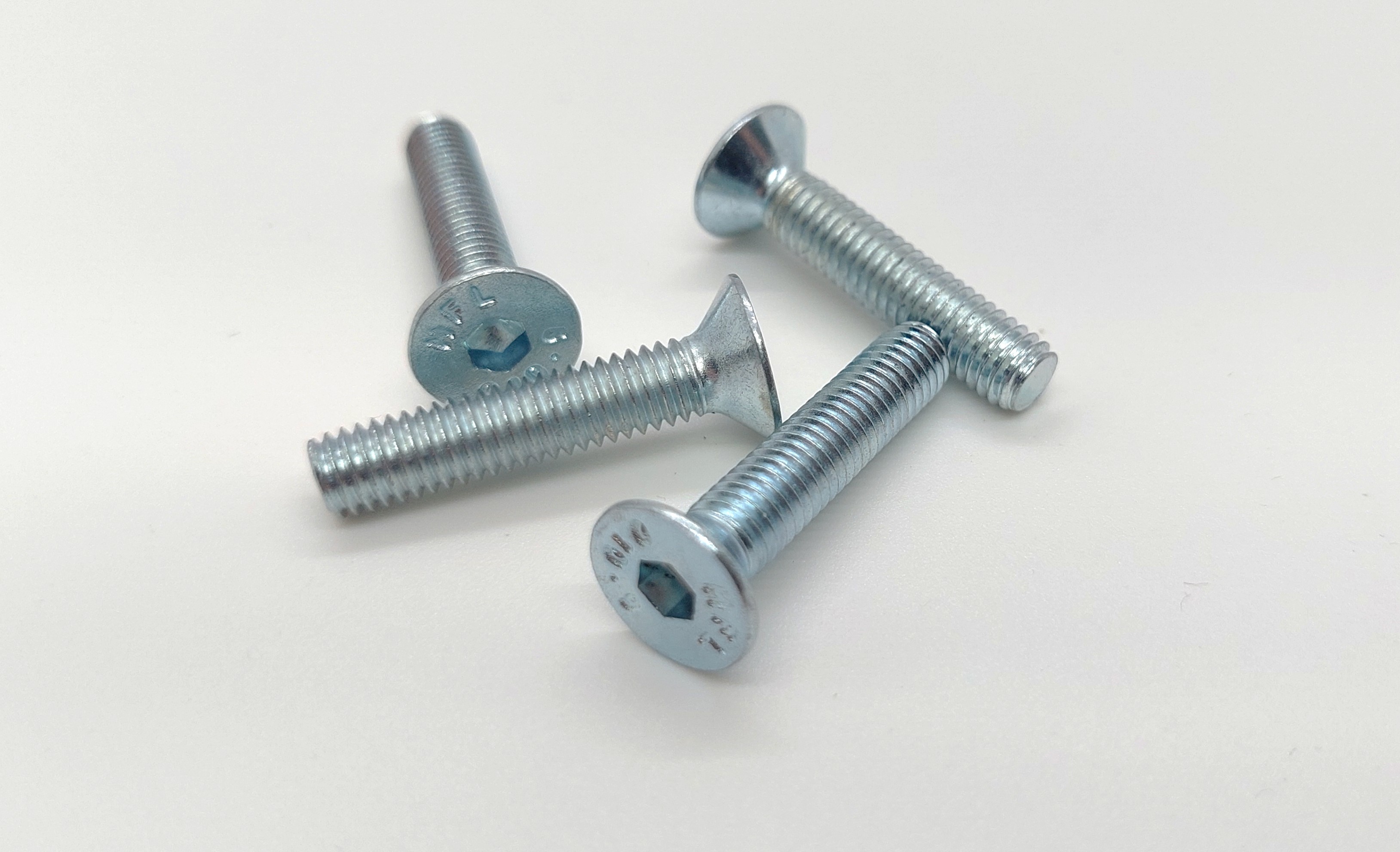

- Includes Set Screws and Flat head Grade 10.9 screws for mounting, spare pin for sliding fixture and pin for holding inner most holder.

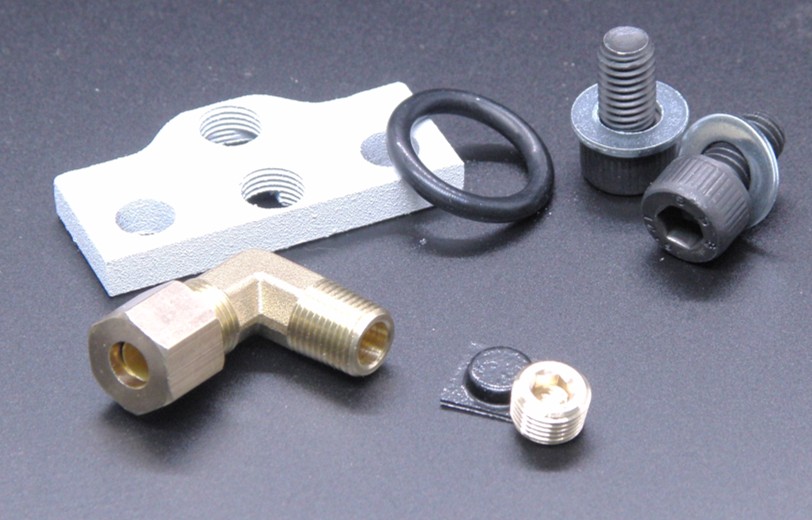

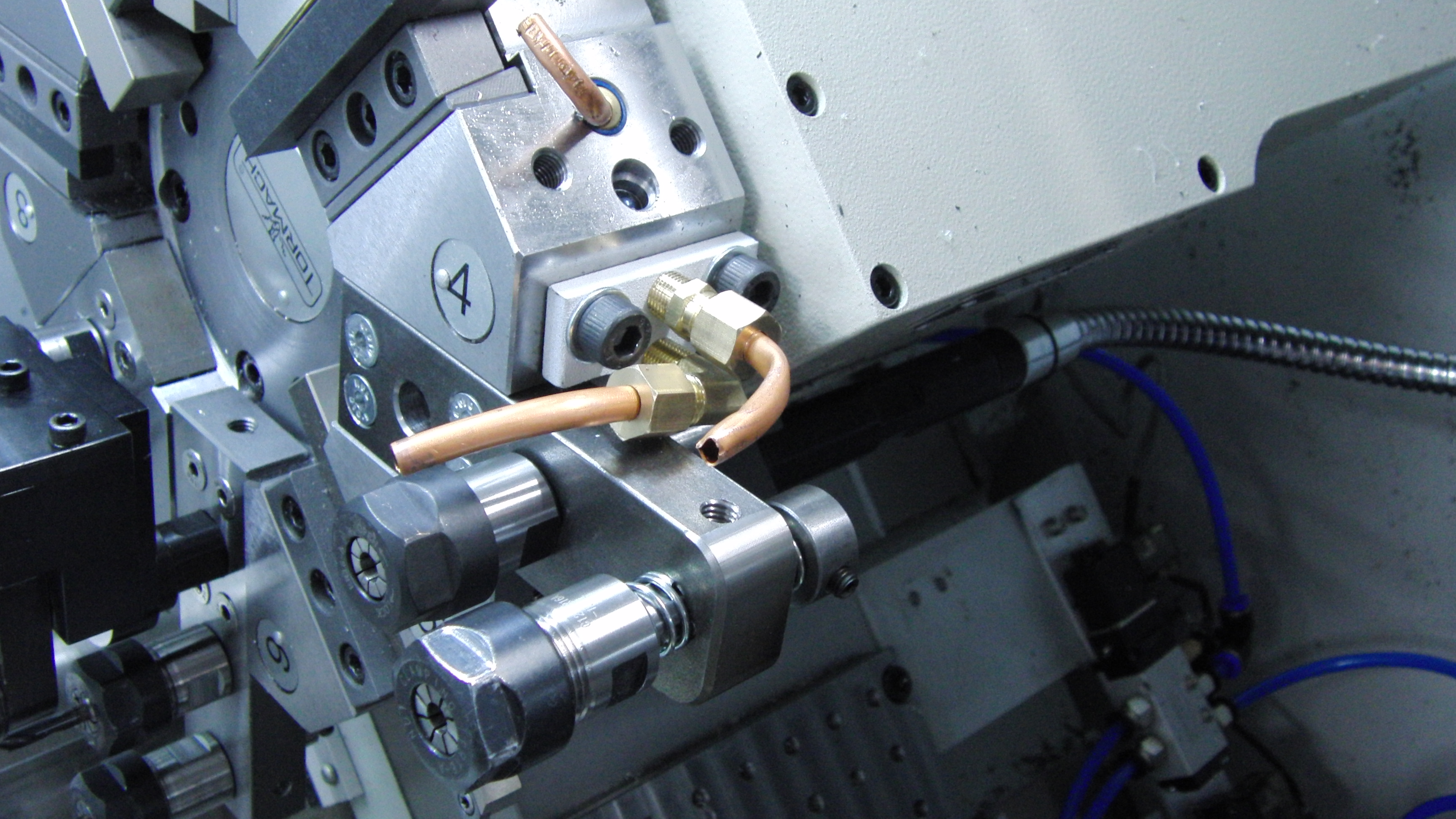

- Includes one Coolant Block with two outlets (for standard 1/4" copper tubing, not includedO"
- Made in the USA
Intended to be used for drilling small holes and tapping. Does not come with ER16 collets.
How to set the tool Offsets and use in PathPilot:
- Change the Turret to the corresponding slot (i.e. "T04" if the block is mounted in the space for Tool 4)
- Change to a tool that is not part of the turret's tool (so any number above 8). For example: "T14" (using a value that is 10 or 20 above the slot makes for an easy way to remember)
- Set the offsets the same way you would for any other tool.
- Remember that when you need to switch to a given tool from a program to first switch to that tool slot and then to the specific tool:
- "N990 (Prep For op)"
- "N1000 T04"
- "N1010 T14"
- "N1020 (Perform op with offset tool)"
Depending on the use, it is also possible to use a dual tool/offset approach (use with caution and test before use): T0x0y where x defines the tool number and y defines the offset (so T0409 would set tool 4 on the turret and apply offsets for tool 9)
