Surface Repair - Graphical Display

The Graphical Display has a similar function to the main display in InStep with a few differences:
- Edges and Vertices are separate objects.
- Faces, Edges and Vertices can be independently selected.
- Mouse behavior is slightly different: left clicking on an object selects it, Shift + LMB deselects it.

The main purpose of the Graphical Display is to show the data available and to allow the user to interact with the available entities.

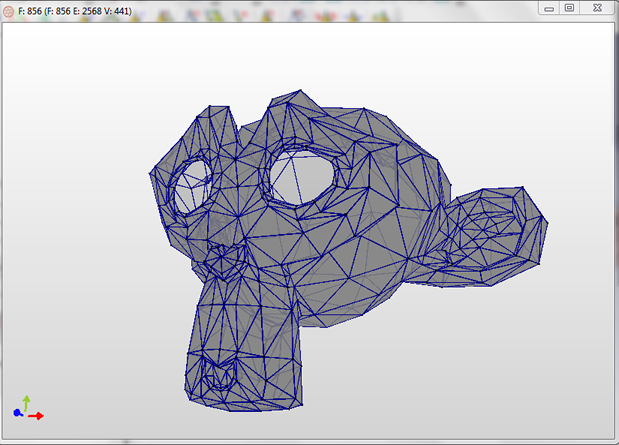

In addition to the graphical information, the display also shows information about the data in the header in the form F: #Number of Facets# (F: #Number of Visible Facets# E: #Number of Visible Edges# V: #Number of Visible Vertices#).
